수중생물 배양 Koi 연못과 치수 퇴수관 웨지 와이어 스크린 필터
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 상품 이름: | 퇴수관 쐐기형 와이어 스크린 | 다른 이름: | 추진기프레스 스크린, V자형 철망 스크린, 곡면 사별기 스크린, 압력 곡률 스크린 |
|---|---|---|---|
| 사용법: | 물 필터 부분, 폐액 처리 | 거르기: | 0.05 밀리미터, 0.08 밀리미터, 0.1 밀리미터, 0.15 밀리미터, 0.2 밀리미터, 0.25 mm,0.3 밀리미터..... 기타 등등 |
| 색: | 스테인리스강 색상 | 재료: | 스테인리스강 와이어 304, 316, 316L, 321, 기타 등등. |
| 스크린 아크 각도: | 45', 60', 120', 270'과 300' | 개구: | 0.025 밀리미터 분. |
| 기능: | 신선한 물, 물 처리를 생산하는 전치 필터링, 필터링 현탁물질, 정수장 | 애프터 서비스는 제공되었습니다: | 온라인 지원, 영상 기술지원 |
| 하이 라이트: | 수중생물 배양 웨지 와이어 스크린 필터,치수 웨지 와이어 스크린 필터,퇴수관 웨지 와이어 스크린 필터 |
||
Filter For Aquaculture Koi Pond And Pulp Downspout Wedge Wire Screen
Wedge Wire Screen Description

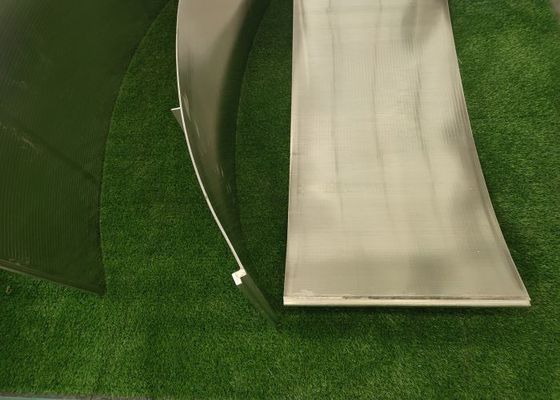

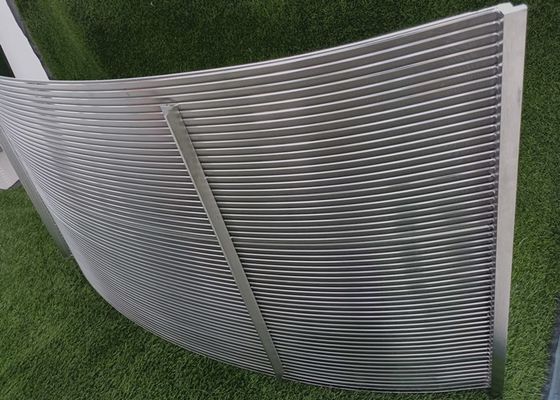

Downspout Sieve bend screen, also named as DSM screen, is a curved concave wedge bar type of
screens made of stainless steel wedge wires.
Wedge wire dsm screen is manufactured by welding the stainless steel V-shaped profile wires to the
wedge wire support rods. Then the wedge wire panel screens are cutting and curved into wedge wire
sieve bend screen with common 45°,60° and other degree arcs.
At last, the wedge wire sieve bends will be inserted into a stainless steel frame for easy installation
onto equipment.
Wedge Wire Screen Parameters:
1. The arc angle of the screen surface: 120° or selected arc
2. Screen width: 50um, 75um, 100um, 150um, 200um
3. Material handling capacity: 34~46m3/h4, feeding pressure: 0.2~0.4MPa
5. Screen width: 585mm, 710mm, 825mm
6.The arc radius of the screen surface: 762mm
7. The screen surface can be used in both directions and has a long service life.
| Name | Downspout Wedge Wire Screen |
| Length Range | up to 6000mm |
| Width Range | up to 6000mm |
| Slot Range | 20 um to 3000 um (Tolerance:+-5um) |
| Other Shapes | Can cut to any shape according to requirement, such as round, semicircle, sector, and so on. |
| Wedge Wire | 0.5x1.5, 0.75x1.5, 1x2, 1.5x2, 2x3, 2x4, 3x5. |
| Support wire | 1.5x2.5, 2x3, 1.8x2.5, 2x4,3x5, 3x6,3x10,4x7 |
| Material | SS304, SS304L, SS316, SS316L, SS321 or as customer's request |
Wedge Wire Screen Features:
- High filtering, sizing, dewatering performance.
- Good mechanical properties.
- Great capacity than the traditional vibrating screens.
- Corrosion and rust resistance.
- High temperature resistance.
- Low maintenance. It is easy to clean and need less maintenance.
- Non-clogging.
- Long and durable service life.
- Easy to install and replace.
Wedge Wire Screen Uses:
The Downspout Wedge Wire Screen are mainly used for dewatering, sizing and waste water cleanup
applications. They can be used in various fields, such as:
- Sewage treatment.
- Laundry wash water cleanup.
- Poultry, fish, fruit and vegetable waste water processing.
- Minerals processing.
- Paper production.
- Textile plants.
Wedge Wire Screen Packing&details:
