상품 이름: | 정지체 메쉬 | 다른 이름: | 추진기프레스 스크린, V자형 철망 스크린이 추진기프레스 분리대를 위한 쐐기형 와이어 스크린을 배열했습니다 |
---|---|---|---|
사용법: | 물 필터 일부, 식품 가공, Koi 연못을 위한 필터 메쉬 | 거르기: | 0.025 mm,0.05 밀리미터, 0.08 밀리미터, 0.1 밀리미터, 0.15 밀리미터, 0.2 밀리미터, 0.25 mm,0.3 밀리미터..... 기타 등등 |
색: | 스테인레스 강 날것 색 | 재료: | 스테인레스 강 201,304,316,304L,316L |
길이: | 최고 6까지 미터 | 구멍: | 20, 40, 254 밀리미터, 10 ", 20 인치 |
기능: | 전치 필터링, 필터링은 문제, 하수 처리를 보류했습니다. | 애프터 서비스는 제공되었습니다: | 온라인 지원, 영상 기술지원 |
하이 라이트: | 정적 웨지 와이어 스크린 시이브 mesh,0.1mm 슬롯 정지 쐐기 철망 스크린,0.1 밀리미터 정전기 쐐기형 와이어 스크린을 배열합니다 |
Slot Size 0.1 Mm For Filter The Fish And Shrimp Feces Static Sieve Mesh
Static Sieve Mesh Advantages:
► Flat surface.
►Excellent filtering performance.
►Accurate distance between supporting profile.
►Welded production process for solid and strong structure.
► Good mechanical properties.
►High strength.
► High load capacity.
►Corrosion and rust resistance.
►Temperature resistance.
►Chemical stability.
Static Sieve Mesh Description
For Filter The Fish And Shrimp Feces Static Sieve Mesh is made by wrapping and welding stainless steel
V-shaped profile wire cylindrically around support rods under automatic wire screen machine.
Each profile wire and support rod is welded by resistance welding. It is used in water well, oil well, gas
wells and for environmental well completions. It made generally by stainless steel 304, 304L,316, 316L,
321 etc. We also produce special material according to the customer request.
Static Sieve Mesh Features:

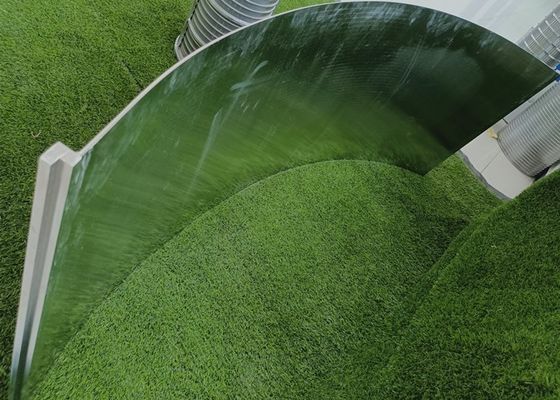

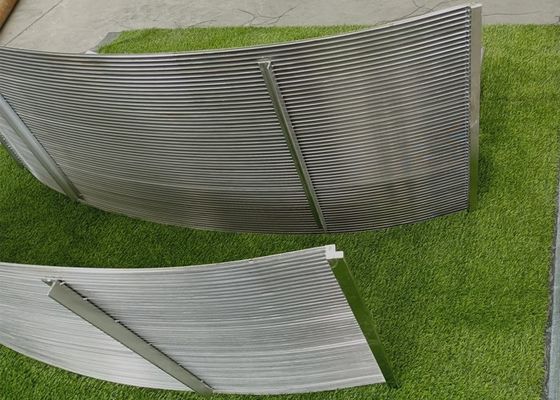

Static Sieve Mesh are made of stainless steel wedge wires. They are consist of a concave curved profile
wire screen, which are inserted into a stainless steel frame.
The Static Sieve Mesh are manufactured by wrapping and welding stainless steel V-shaped profile wire
and support rods. Then the panel screens are cutting and curved into arc screen.
The Static Sieve Mesh have continuous slots, which has efficient filtering performance.
Forces exerted as materials flows against the curved surface, curved screen structure has better filtering
and greater capacity than the wedge wire screen panel.
Name | For Filter The Fish And Shrimp Feces Static Sieve Mesh |
Wedge Wire | 0.5x1.5, 0.75x1.5,1x2,1.5x2.5,2x3,2x4,3x5,etc. |
Support Rod | 1.5x2.5,2x3,3x5,4x7,5x8,etc, |
Material | Stainless steel 304 304L 316 316L or as customer's request |
Frame | No Frame or "L" Type frame, Ordinary Frame,5x10mm frame,etc. Customized is available |
Arc height | 10mm,15mm,20mm,50mm or depend on you size of screen panel. |
Static Sieve Mesh Uses:
Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and
other industries.
Screening liquids, powders and other materials. Petroleum, chemical, metallurgy, mining,
pharmaceutical purification, Drilling fluid purification.
