탈수하는 무거운 쇠똥 스퍼액터 웨지 와이어 필터 엘리멘트 0.5-0.8mm 슬롯 찌꺼기
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 상품 이름: | 찌꺼기 탈수를 위한 무거운 쇠똥 스퍼액터 필터 엘리멘트 0.5-0.8MM 슬롯 | 플랜지 간격: | 15 밀리미터 |
|---|---|---|---|
| 신청: | 쇠똥 필터 | 필터 방식: | 안쪽에서 바깥쪽으로 |
| 기능: | 신선한 물, 물 처리를 생산하는 전치 필터링, 필터링 현탁물질, 정수장 | 바 두께를 강화하세요: | 10 밀리미터 |
| 구멍 크기: | 1-3mm 5mm costomized | 타입: | 필터 실린더, 워터 필터 카트리지, 필터 엘리멘트 |
| 지름: | 1000 밀리미터 | 재료: | 금속, SS304, 304L, 316, 316L |
| 하이 라이트: | 0.8 밀리미터 슬롯 웨지 와이어 filter,0.5mm 슬롯 웨지 와이어 필터,쇠똥 스퍼액터 쐐기 와이어 필터 |
||

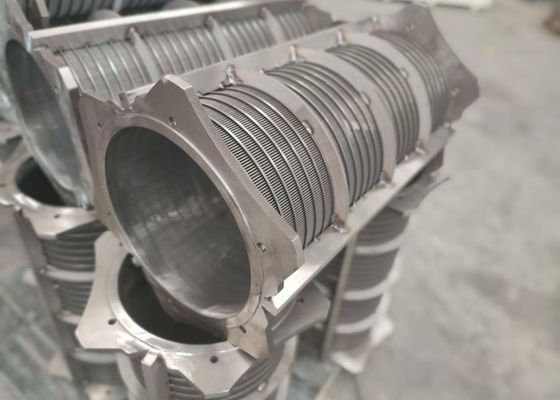

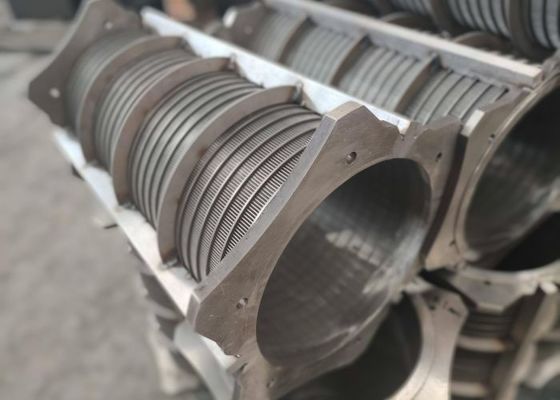

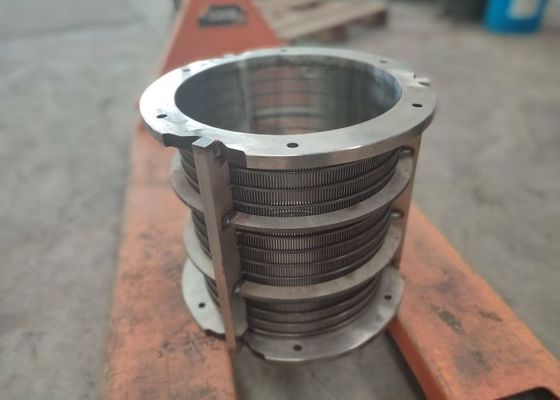

Heavy Cow Dung Speractor Filter Element 0.5-0.8MM Slot For Sludge Dewatering
Product information:
The Wedge Wire screen is made up of rods and profile wire. The rod can be round wire, triangular
wire or trapezoid wire. The profile wire is triangular wire (V-shaped wire). This type of pipe screen has
a structure and high open area, as well as accurate slot dimension. At the same time, stainless steel
pipe screen has heat-resisting, anti-corrosive, good machine capability, last long, safety and reliability
and so on characteristics. It can be used in many kinds of medium filtering.
Product Description:
It is processed and welded by wedge-shaped mesh. It is durable and wear-resistant. Used in mining filtration and petroleum filtration.
| Name |
304 Vibrating Screen Tube Mine Screen,Stone Screen 1-5mm Slot Stainless Steel Wedge Wire Screen |
||||
| Material | Low carbon galvanized or stainless steel | ||||
| Type | 1.The wire is the length of the screen and the rod is the circle of the screen 2.The wire is the circle of the screen and the rod is the length of the screen |
||||
|
Product Feature |
It's not easy to block | ||||
|
It can filter fine particles |
|||||
| Normal Length | 400mm,500mm 550mm 600mm,602mm According to request | ||||
| Slot Size | 0.05mm-35mm | ||||
| Slot Direction | Radial Direction | ||||
| Cylinder diameter | 10mm-1200mm | ||||
| Usages | V wire reversed wrapped wedge wire screen is mainly used for water well screens designed for depths of 100 m, 200 m, 350 m & 600 m. | ||||
Stainless Steel Wedge Wire Ribb Add Filter Half Pipe For Water Filter Specification:
Min slot: 0.05mm.
Filter: From outside to inside.
Styles of connection: By welding or by threaded male/female coupling.
Standard length: 1m - 5.85m.
Stainless Steel Wedge Wire Ribb Add Filter Half Pipe For Water Filter Features:
♦V-Shaped Slots: Openings shaped like a "v" that open toward the inside of the well tend to allow
the particles that are just barely smaller than the width of the slot pass. In other shapes of openings,
these particles would get caught in the screen and clog it.
♦Continuous Slots: The special design gives continuous slot opening across the periphery and length of
screen.
♦Very Large Open Area: This design gives continuous slot and hence the% open area for water to enter
is more than 2 times that of conventional slotted pipes of any size and slot opening. This allows more
water to enter at much lesser frictional head loss and the efficiency of tube well is improved appreciably.
♦Better Sand Filtration: Due to specialize manufacturing process, wide range of slot opening is available
down to 0.15mm to allow proper slot selection depending upon the size of sand in particular area.
This gives better sand control and reduced pump maintenance and longer tube well life.
♦Energy Saving: Due to reduce frictional head losses and increased discharge, the pump load reduces
the power required to pump same quantity of water. Power saving of around 20-25% is observed.
Stainless Steel Wedge Wire Ribb Add Filter Half Pipe For Water Filter Advantage:
When compared to conventional slotted pipe, wire wrapped wedge wire screens have superior open
area due to their continuous slot openings. The benefits of which will:
. Reduce energy consumption and increase water flow.
. Reduce erosion of entry surfaces and increase well life.
. Allow a uniform and efficient well development.
. Reduce significantly potential pump damage and subsequent maintenance costs.
