0.03mm Slot 30um Wedge Wire Screen Filter Element
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 상품 이름: | 스테인레스 강 웨지 와이어 하프 파이프 고상액 세퍼레이터 기재 | 재료: | 304 또는 316L 스테인레스 강 904L |
|---|---|---|---|
| 신청: | 공장, 음식 & 음료 공장, 건설을 제조하기 | 여과기 등급: | 20-81% |
| 기능: | 필터 물 필터 | 길이: | 600mm 또는 주문을 받아서 만드는 |
| 슬롯 허용한도: | +/- 0.05mm | 타입: | 워터 필터 카트리지, 스테인레스 강 필터 엘리멘트 |
| 사이즈: | 175*600mm 200*600 300*600mm | 애프터 서비스는 제공되었습니다: | 온라인 지원, 비디오 기술 지원, 제공된 어떤 해외 서비스, 현장 설치 |
| 하이 라이트: | 30um wedge wire screen filter,0.03mm slot wedge wire screen filter,wedge wire screen filter element |
||

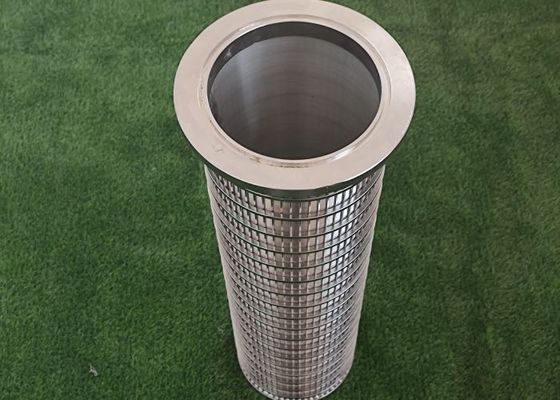

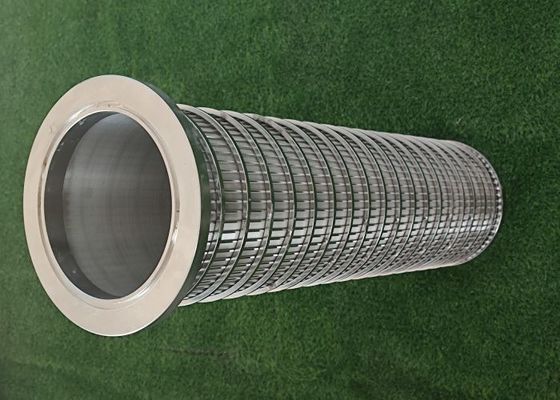

0.03 Mm Slot 30 Um Filter Element Wedge Wire Screen Filter For Water Filtering Equipment
Wedge Wire Screen Cartridge Characteristics:
Solid Liquid Separator Wedge Wire Screen with characteristics of toughness and clogging resistance
where slot suitable for the application are formed by arranging "wedge wires" with a triangle shape at equal
intervals. They can be used for filtration, solid-liquid separation, classification, dewatering, concentration,
etc. regardless of industry or location.
There will be technical staff to provide professional answers.
| Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||
| OD Range | According to request and the actual flange and strengthen bar | ||||
| Normal ID | 176mm,200mm,230mm,255mm. According to request | ||||
| Normal Length | 400mm,500mm 550mm 600mm,602mm According to request | ||||
| Normal Slot | 0.21mm, 0.4mm, 0.41mm, 0.8mm. Customized 0.02-3mm. | ||||
| Slot Direction | Radial Direction | ||||
| Wedge Wire | 0.75x1.5 | 1x2 | 2x3 | 2*4 | 3*5 |
| Support Rod |
1.5x2.5 2x3 |
1.5x2.5 2x3 |
2x3 2x4 3x5 3x6 |
2x4 3x5 3x6 5x6 |
3x5 3x6 5x6 |
| End Finishing | Flange, , Metal Ring, etc | ||||
| Note | Customized According To Requirement | ||||
Wedge Wire Screen Cartridge Application:
Dewatering Wire Wrapped Screen is used in water supply and drainage, chemical and petrochemical
process, mineral, paper and food processing equipment.
Fixed bed reactor in chemical and petrochemical plant is one of its main uses.
It can be used in axial reactor (flat type) or radial reactor (cylindrical type).
Dewatering Wire Wrapped Screen has many varieties and specifications, which can be used according
to customers Custom made.
(our company can design and manufacture according to customers' requirements, and provide calculation
sheet and tensile test report)Material: 316L, etc.
Wedge Wire Screen Cartridge Advantage:
1. V-shaped wire structure, not easy to block
2. Easy to clean
3. Sturdy construction
4. Easy to install and maintain wire wrapped screen is also our main product,
we have four wedge wire screen production equipment,
which can process various sizes of drum screens.
We have a huge advantage in the design, manufacturing and after-sales service of the drum screen.
Wedge Wire Screen Cartridge Packing & Delivery
