제품 상세 정보:
결제 및 배송 조건:
|
상품 이름: | 쐐기 철망 | 다른 이름: | 추진기프레스 스크린, 정적 스크린, 곡선형 굴곡 화면 필터 |
---|---|---|---|
사용법: | 폐수 필터, 물 필터 부분, koi 연못을 위한 필터 | 거르기: | 0.05 밀리미터, 0.08 밀리미터, 0.1 밀리미터, 0.15 밀리미터, 0.2 밀리미터, 0.25 mm,0.3 밀리미터..... 기타 등등 |
색: | 스테인리스강 색상 | 재료: | 304 또는 316 L 스테인레스 강 |
길이: | 2.5~40, 5/10/20/30/40Inch, 40, 10 20 | 구멍 크기: | 0.025 밀리미터--50 밀리미터 |
기능: | 신선한 물, 물 처리를 생산하는 전치 필터링, 필터링 현탁물질, 정수장 | 애프터 서비스는 제공되었습니다: | 온라인 지원, 영상 기술지원 |
하이 라이트: | 316 stainless steel wedge wire net,stainless steel wedge wire net 316,garbage separation stainless steel wedge wire |

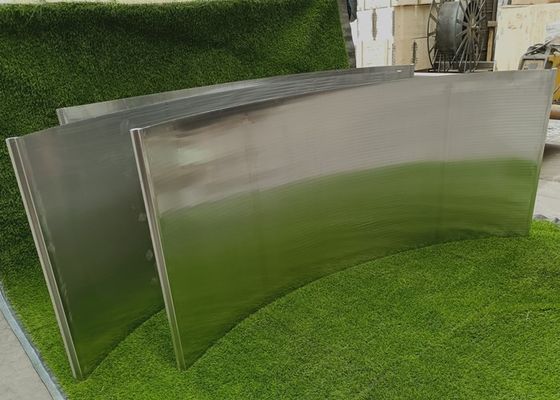

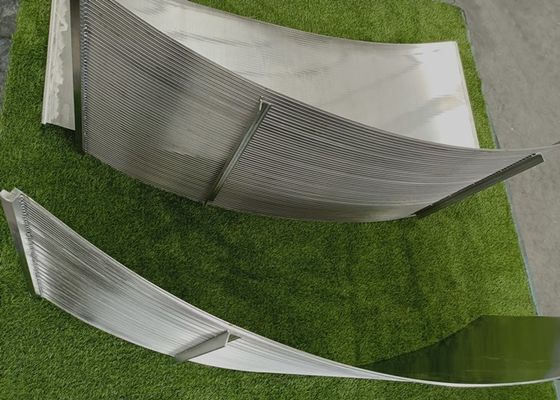

Stainless Steel 316 Net For Static Garbage Separation Wedge Wire Screen
Wedge Wire Screen Description
Static Garbage Separation Wedge Wire Screen are used in static sieves for either dewatering or
classification.
As the slurry flows over the inclined screen surface, the perpendicular layout of the wires to the flow,
allows for solids to be retained while liquid passes through the screen.
Made from Vee-Wire screens,the 120 Sieve Bend Screen can provide up to 50 percent more open area
with a narrower wire profile.
With a number of manual-handling restrictions. Johanson Screens has developed an innovative split-sieve
design.
This design offers a simple, economical benefit by reducing the physical size and the weight of the screen.
Wedge Wire Screen Parameters:
1. The arc angle of the screen surface: 120° or selected arc
2. Screen width: 50um, 75um, 100um, 150um, 200um
3. Material handling capacity: 34~46m3/h4, feeding pressure: 0.2~0.4MPa
5. Screen width: 585mm, 710mm, 825mm
6.The arc radius of the screen surface: 762mm
7. The screen surface can be used in both directions and has a long service life.
Name | Wedge Wire Screen |
Colour |
Stainless Steel Silver color or can be customized accroding to Customer's specific request |
Size | Profile wire 2*3mm, 3*4mm; Support Wire: 3*4, 3*5mm or customized |
Material | Stainless steel 304 316 316L or as customer's request |
Wedge Wire Screen Features:
1. The wedge tapered opening becomes progressively wider increasing dewatering efficiency.
2. Non plugging,to make sure the smooth circulation.
3. Slot sizes ranging form0.05mm to 20mm.
4. Durable and capable of carrying heavier loads without support structures.
5. One piece construction.
6. Wide range of materials.
7. Easy to clean,long service life,safe and reliable,low comprehensive cost.
Wedge Wire Screen Uses:
Widely used in mining, coal, petroleum, fertilizer, grain, salt, environmental protection and
other industries.
Screening liquids, powders and other materials. Petroleum, chemical, metallurgy, mining,
pharmaceutical purification, Drilling fluid purification.
